MT-20-6J-RL Series Meter Socket

METO MT-20-6J-RL single-phase meter socket complies with North American electrical codes. Heavy galvanized steel housing paired with thick copper terminals delivers stable, safe power connection.

Pre-reserved cable ports and standard safety warning labels support indoor & outdoor installation, with full OEM customization on size, terminals and coatings.

Ask Quote Now Download Brochure

Video

Product Overview
Technical Parameters

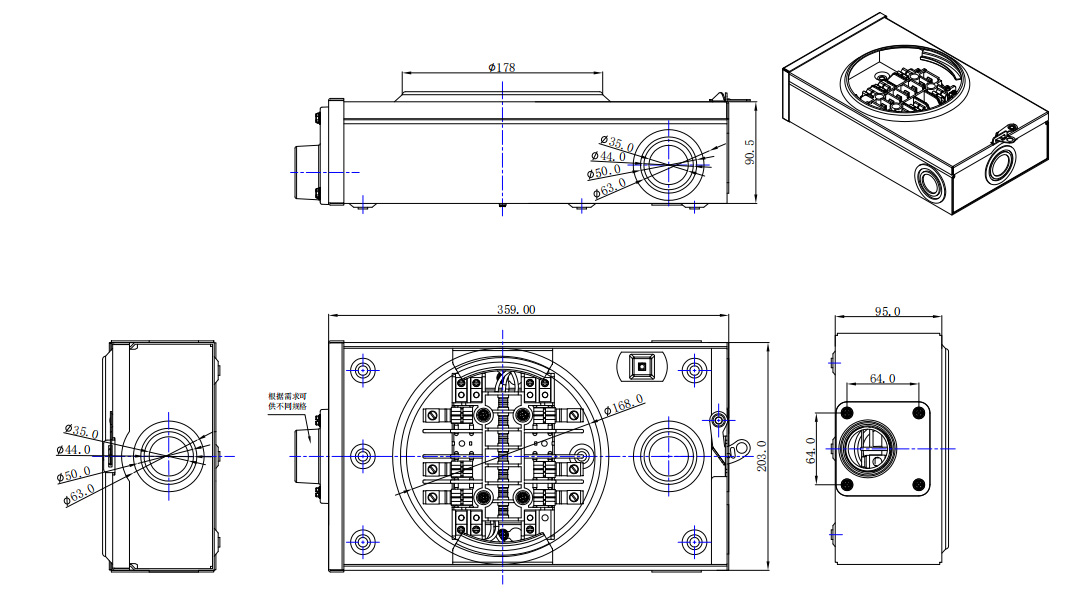

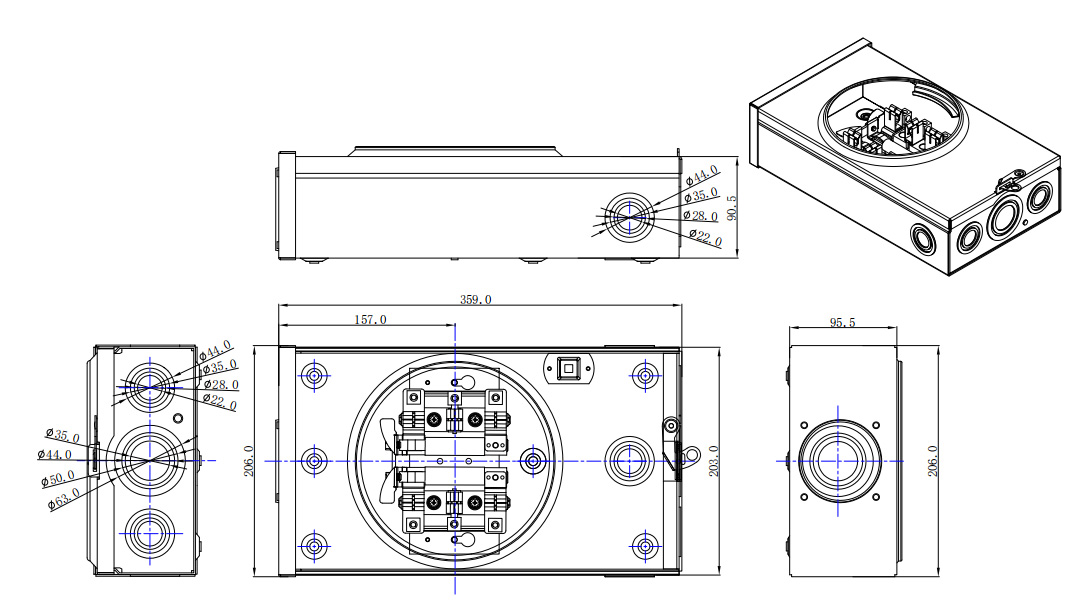

Parameter Drawing
Solution
Related Products

Power Distribution One-Stop Solution

Full Qualifications, Ready For Your Tender

Direct Purchase Of Raw Materials, Automated Production Line

Delivery Schedule Is Stable And Supports Large-scale Orders

Provide Domestic And International Certifications As Well As Product Test Reports

24-hour Professional Team Is Available To Serve You

Product Overview

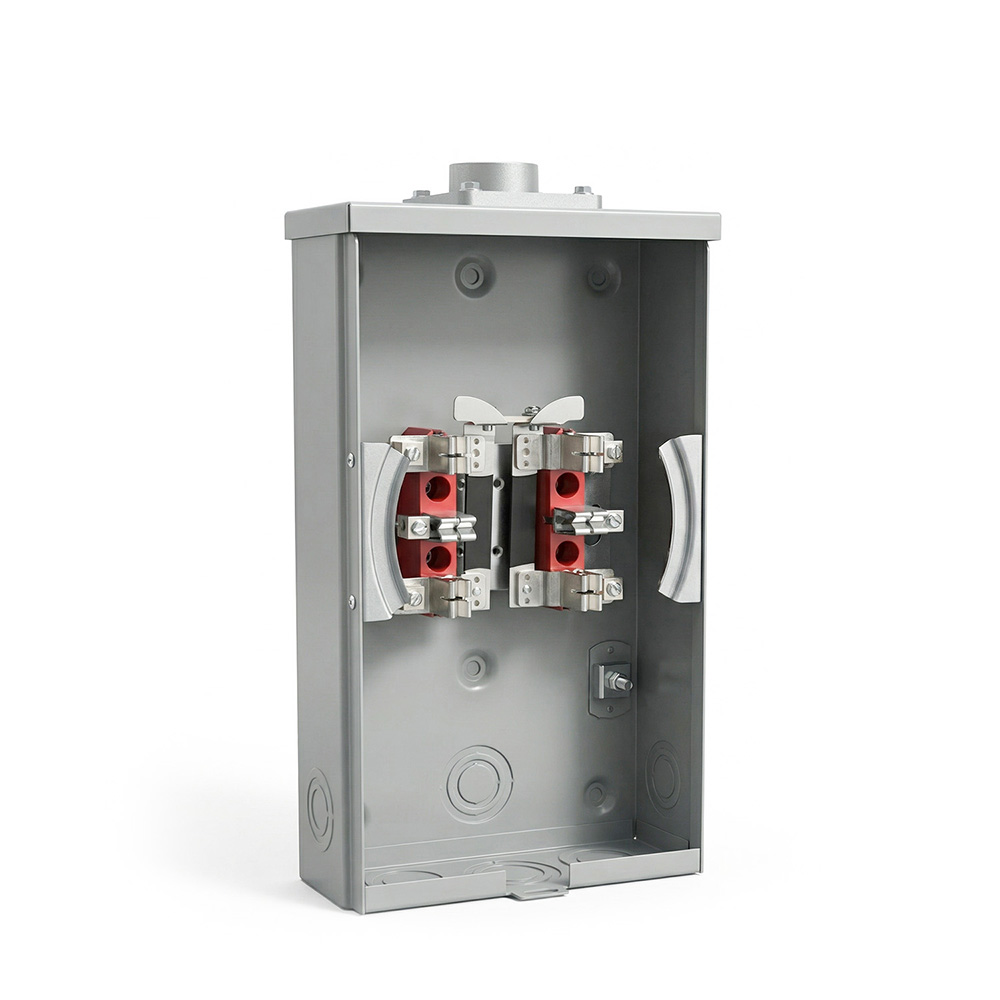

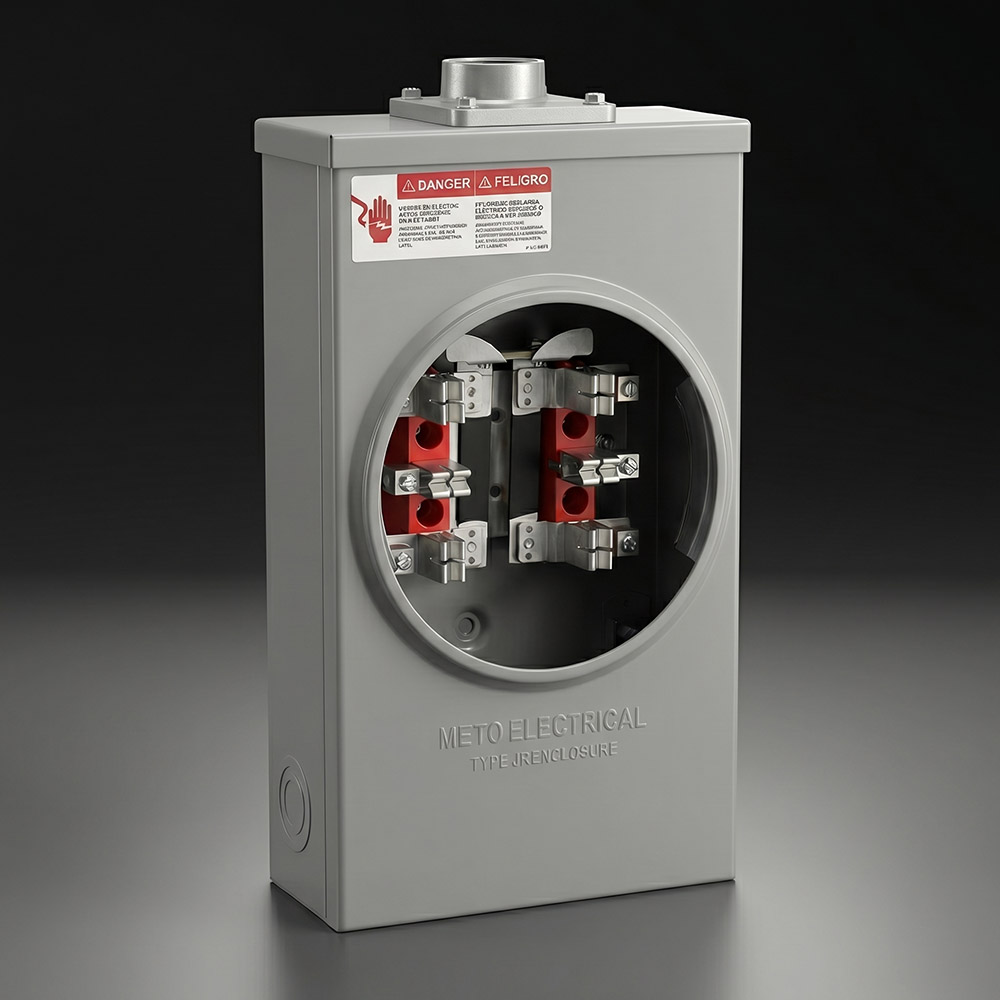

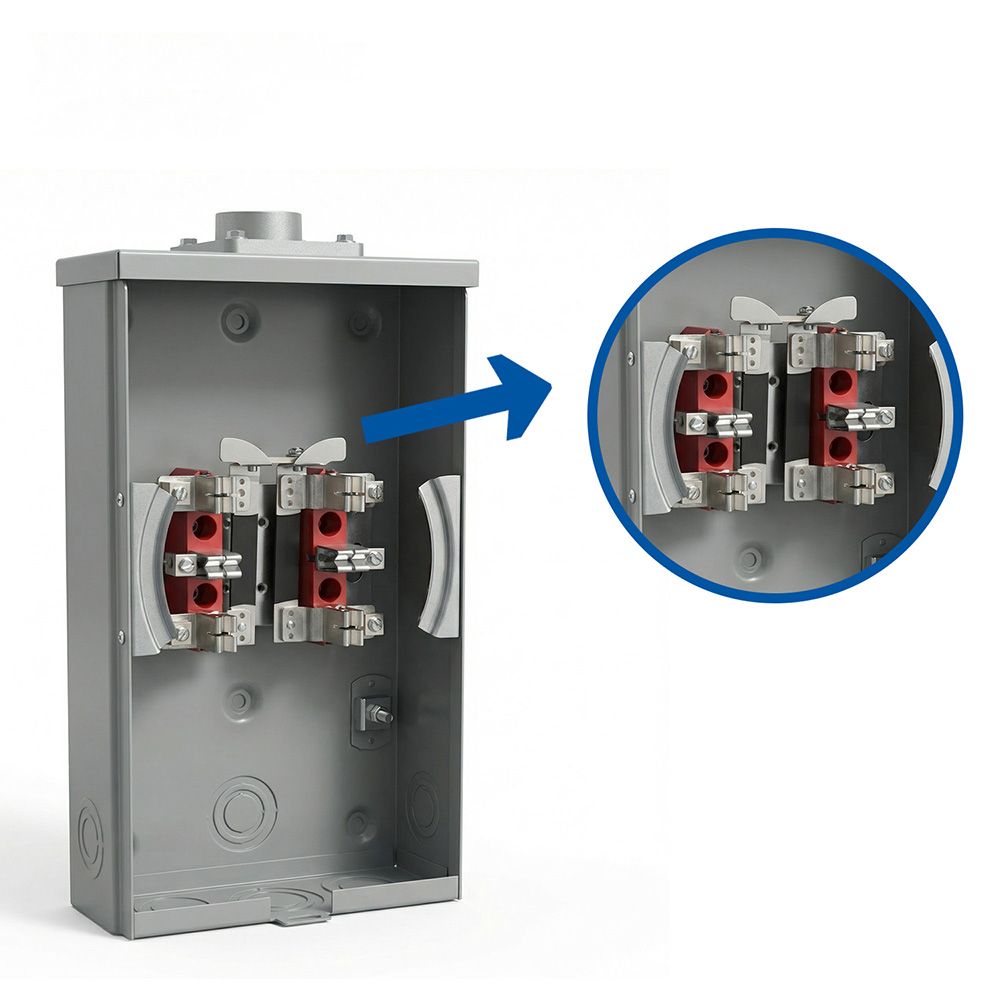

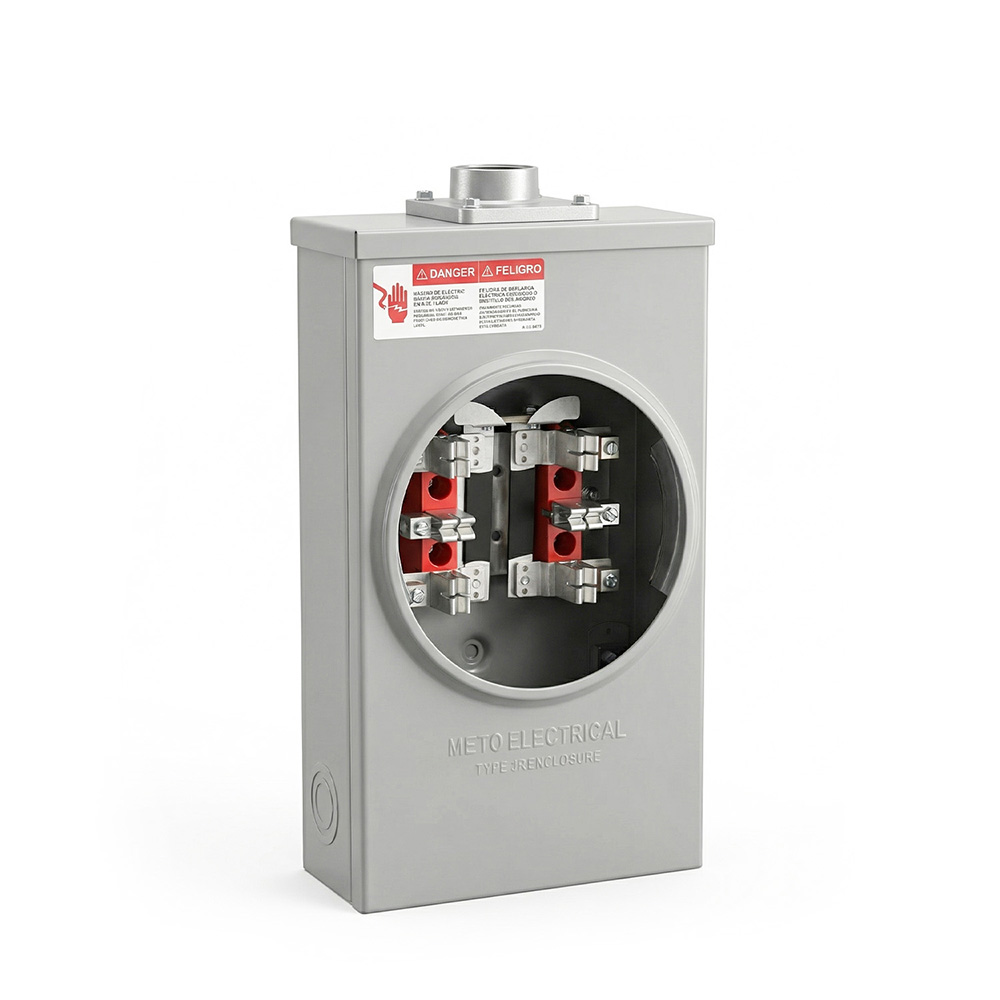

The MT-20-6J-RL meter socket is a fully assembled UL-compliant residential electric meter enclosure developed by METO. Constructed with thick galvanized steel housing, it features robust internal copper terminal lugs with insulated red bushings for stable electrical connection. The integrated dual-language danger warning label meets North American electrical safety standards, with reserved top and side cable entry holes for flexible wiring layout.

Application

New residential housing construction & renovation projects
Modular prefab houses and temporary construction cabins
Small commercial retail stores, office suites
Agricultural farm power supply facilities
Rental apartment and multi-family low-rise buildings

Features and Advantages

TRUST & COOPERATION

SECURE TRANSACTIONS

GLOBAL NETWORK

BUSINESS GROWTH

PROFESSIONAL SUPPORT

TECHNICAL EXPERTISE

Technical Parameters

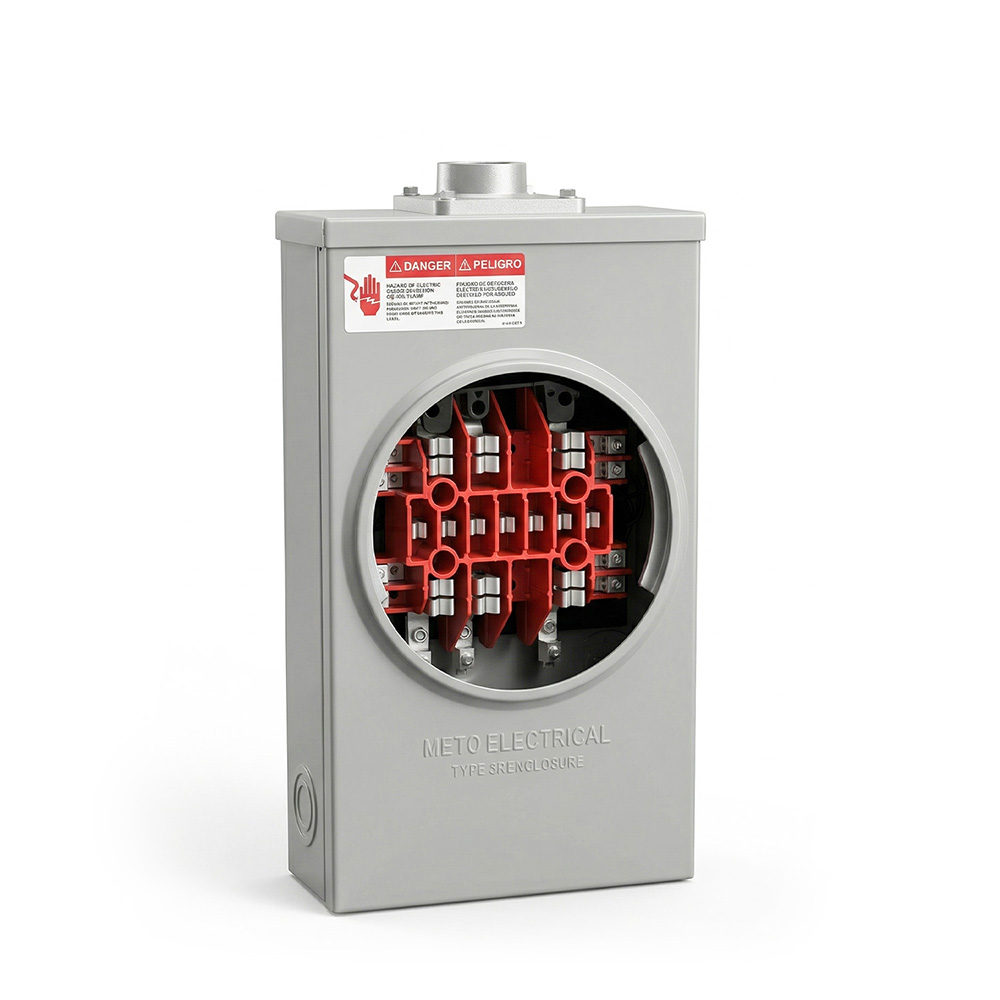

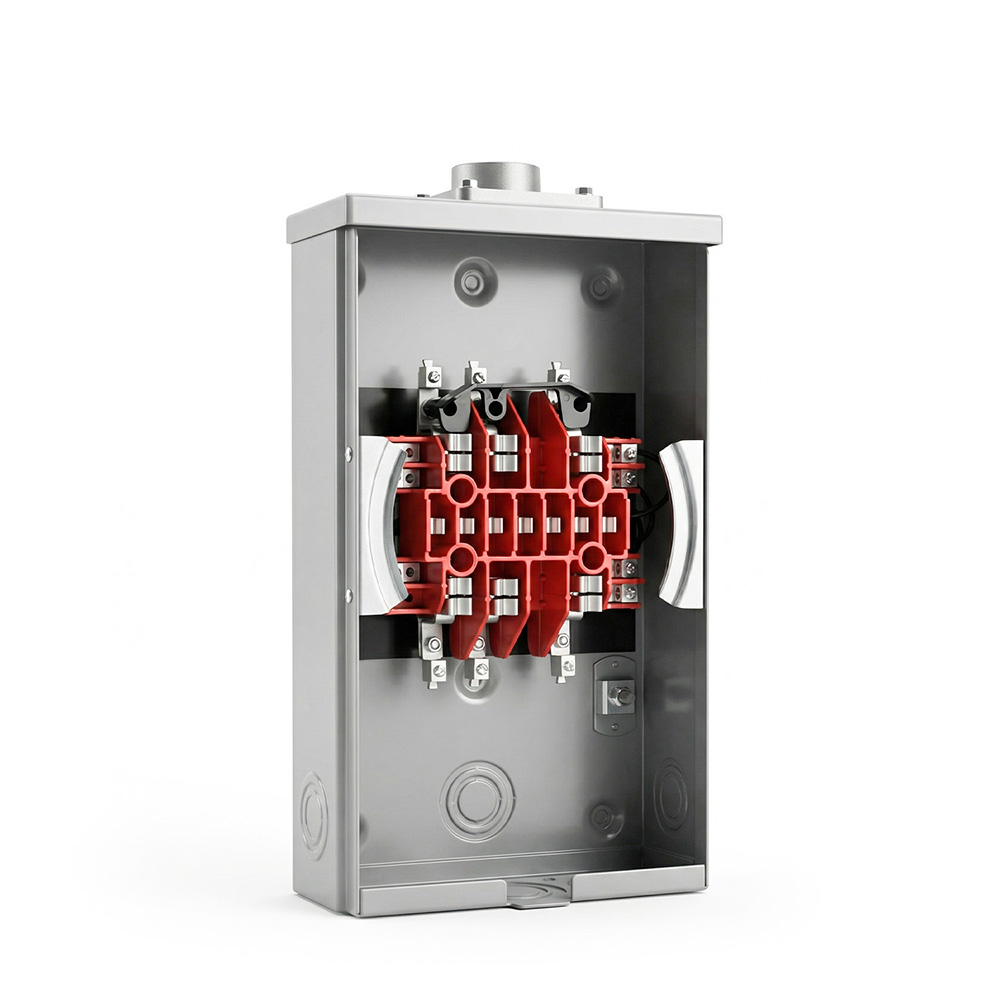

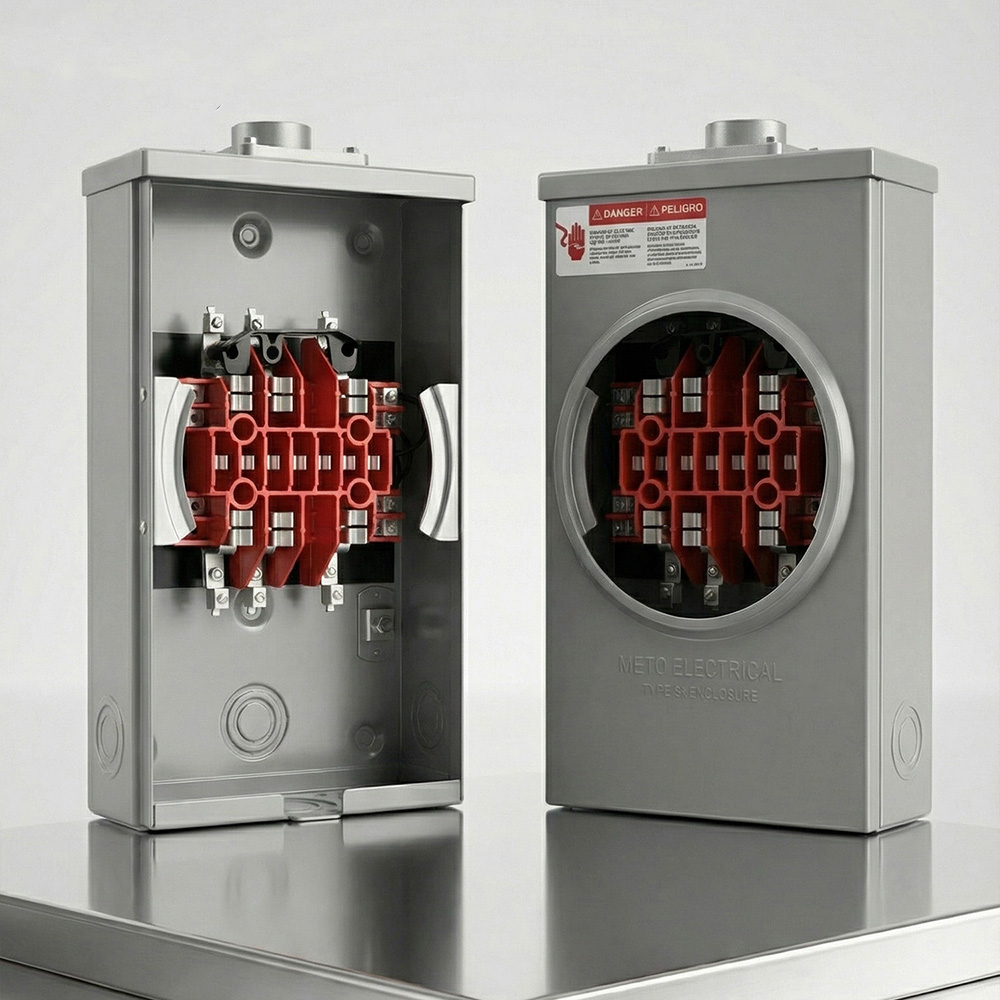

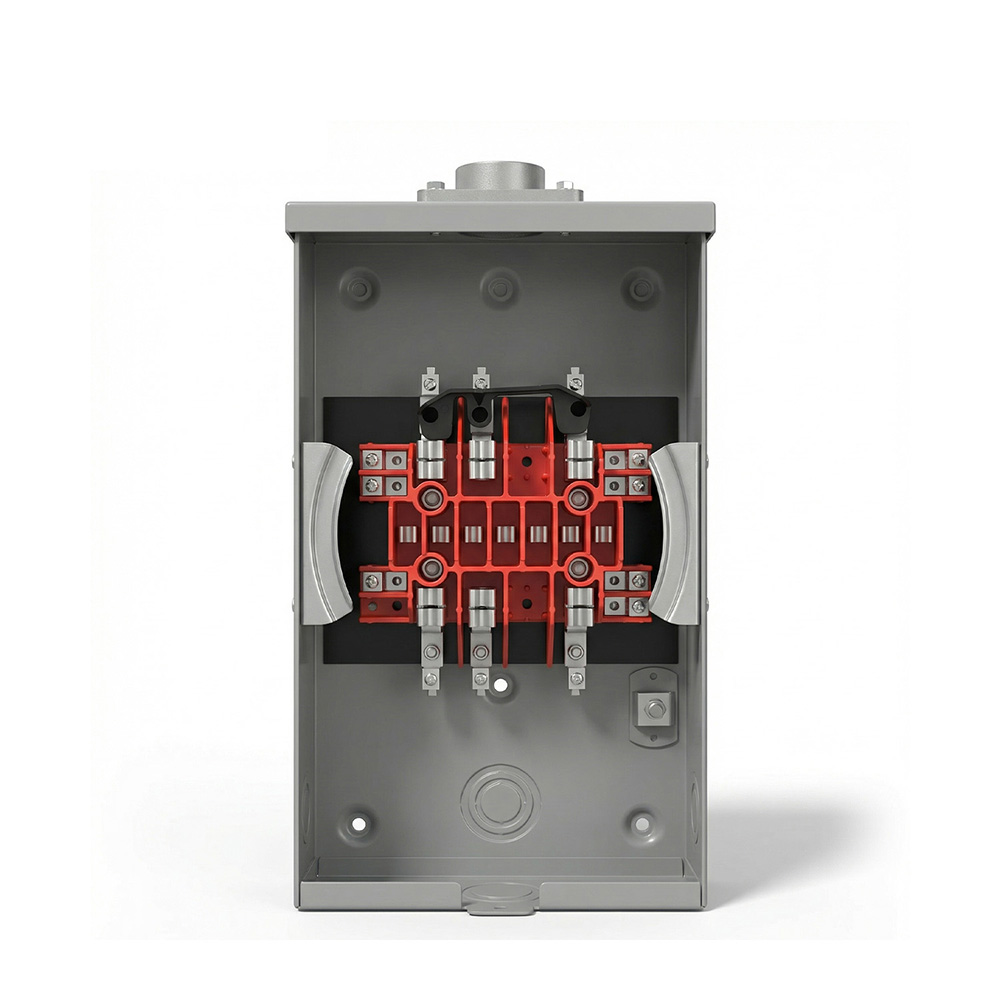

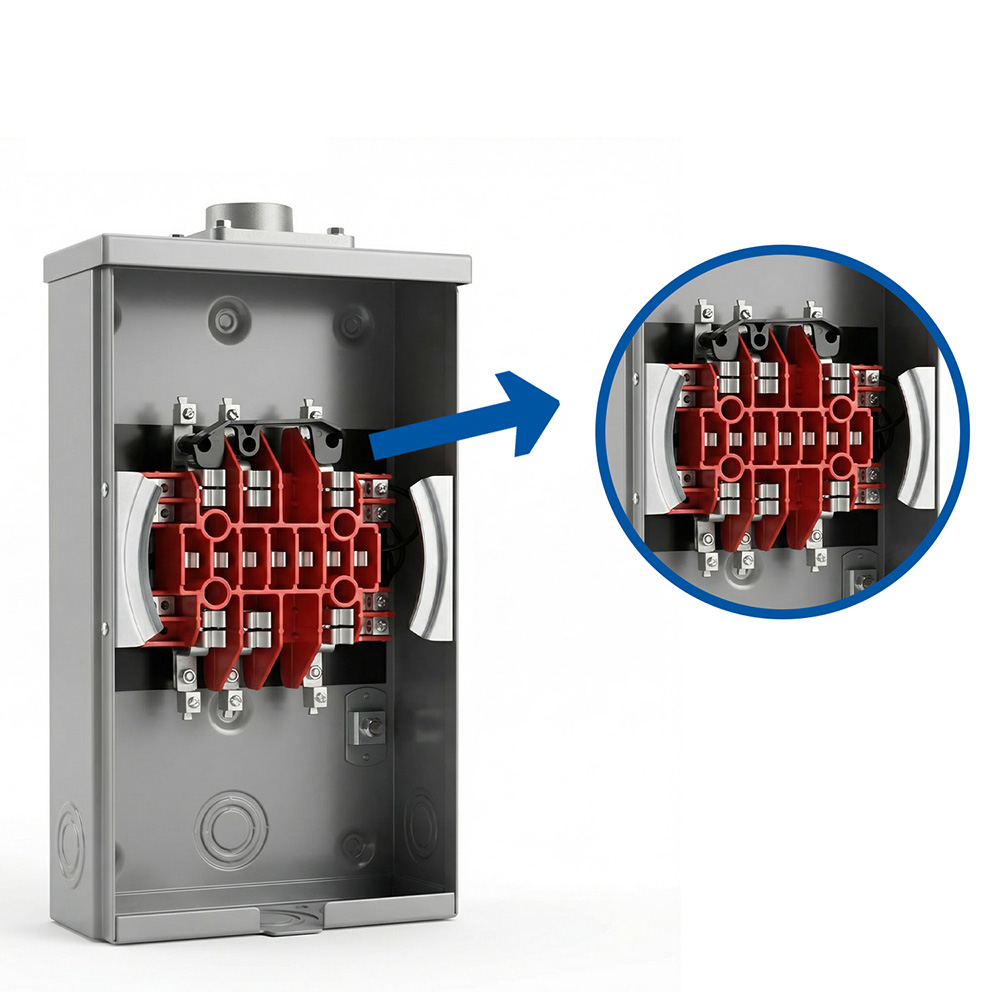

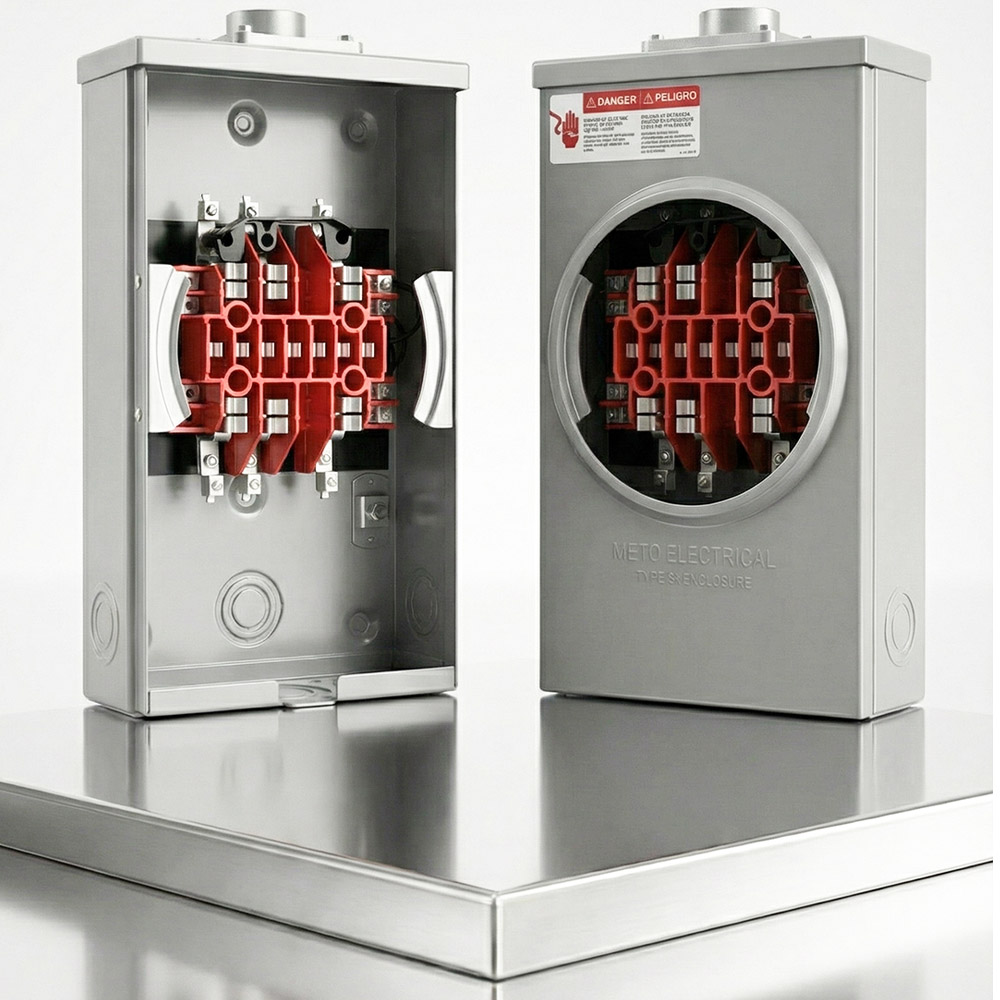

MT-20-13J-RL

MT-20-6J-RL

MT-320-4J-RL

Download

Parameter	Specification
Rated Current	20A
Rated Voltage	20/320V AC
Phase	1 Phase
Frequency	60Hz
Number of Positions	Single Position
Jaw Configuration	13 Terminal
Socket Type	Ring / Ringless optional
Bypass Type	Non-Bypass / Horn Bypass optional
Mounting Type	Surface Mount
Enclosure Material	Galvanized Steel
Finish	Outdoor Powder Coating
Terminal Type	Mechanical Lug
Conductor Range	Al/Cu, as required
Hub Provision	Top / Bottom hub opening optional
Grounding	Ground / Neutral provision available
Cover Type	Lockable Cover
Application	Residential / Light Commercial
Certification	UL Listed / Certification Pending

The file is not available yet. Please contact us for assistance.

Parameter	Specification
Rated Current	20A
Rated Voltage	20/320V AC
Phase	1 Phase
Frequency	60Hz
Number of Positions	Single Position
Jaw Configuration	6 Terminal
Socket Type	Ring / Ringless optional
Bypass Type	Non-Bypass / Horn Bypass optional
Mounting Type	Surface Mount
Enclosure Material	Galvanized Steel
Finish	Outdoor Powder Coating
Terminal Type	Mechanical Lug
Conductor Range	Al/Cu, as required
Hub Provision	Top / Bottom hub opening optional
Grounding	Ground / Neutral provision available
Cover Type	Lockable Cover
Application	Residential / Light Commercial
Certification	UL Listed / Certification Pending

The file is not available yet. Please contact us for assistance.

Parameter	Specification
Rated Current	320A
Rated Voltage	20/320V AC
Phase	1 Phase
Frequency	60Hz
Number of Positions	Single Position
Jaw Configuration	4 Jaw
Socket Type	Ring / Ringless optional
Bypass Type	Non-Bypass / Horn Bypass optional
Mounting Type	Surface Mount
Enclosure Material	Galvanized Steel
Finish	Outdoor Powder Coating
Terminal Type	Mechanical Lug
Conductor Range	Al/Cu, as required
Hub Provision	Top / Bottom hub opening optional
Grounding	Ground / Neutral provision available
Cover Type	Lockable Cover
Application	Residential / Light Commercial
Certification	UL Listed / Certification Pending
