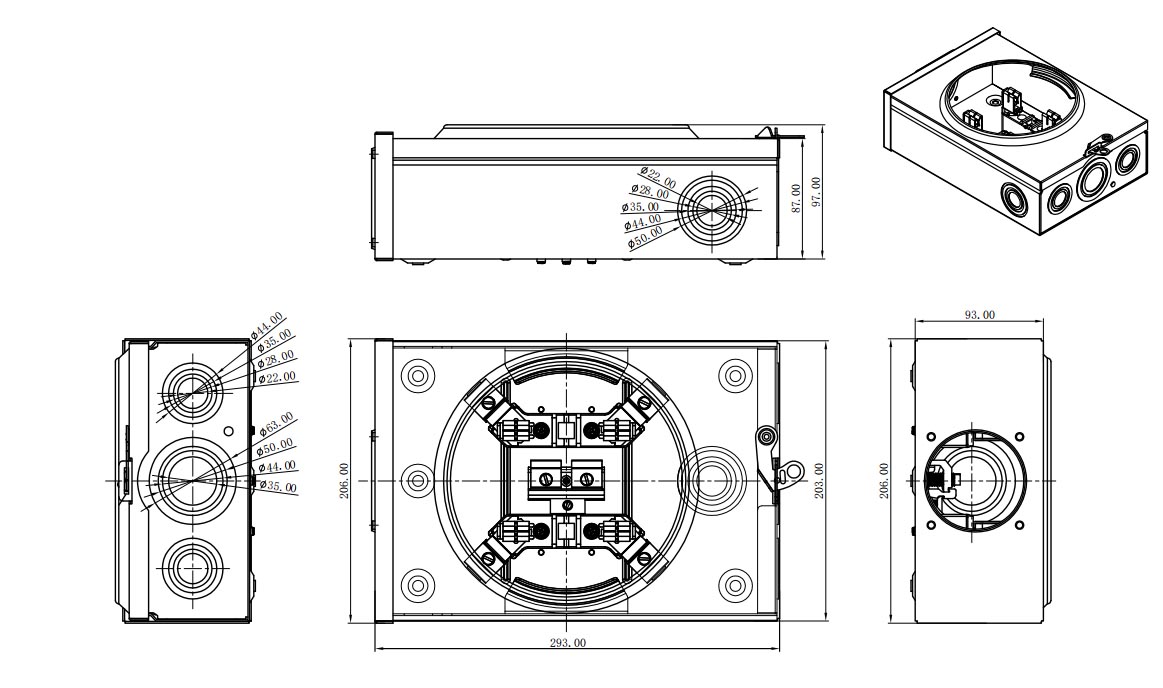

Parameter Drawing
Solution
Related Products

Power Distribution One-Stop Solution

Full Qualifications, Ready For Your Tender

Direct Purchase Of Raw Materials, Automated Production Line

Delivery Schedule Is Stable And Supports Large-scale Orders

Provide Domestic And International Certifications As Well As Product Test Reports

24-hour Professional Team Is Available To Serve You

Product Overview

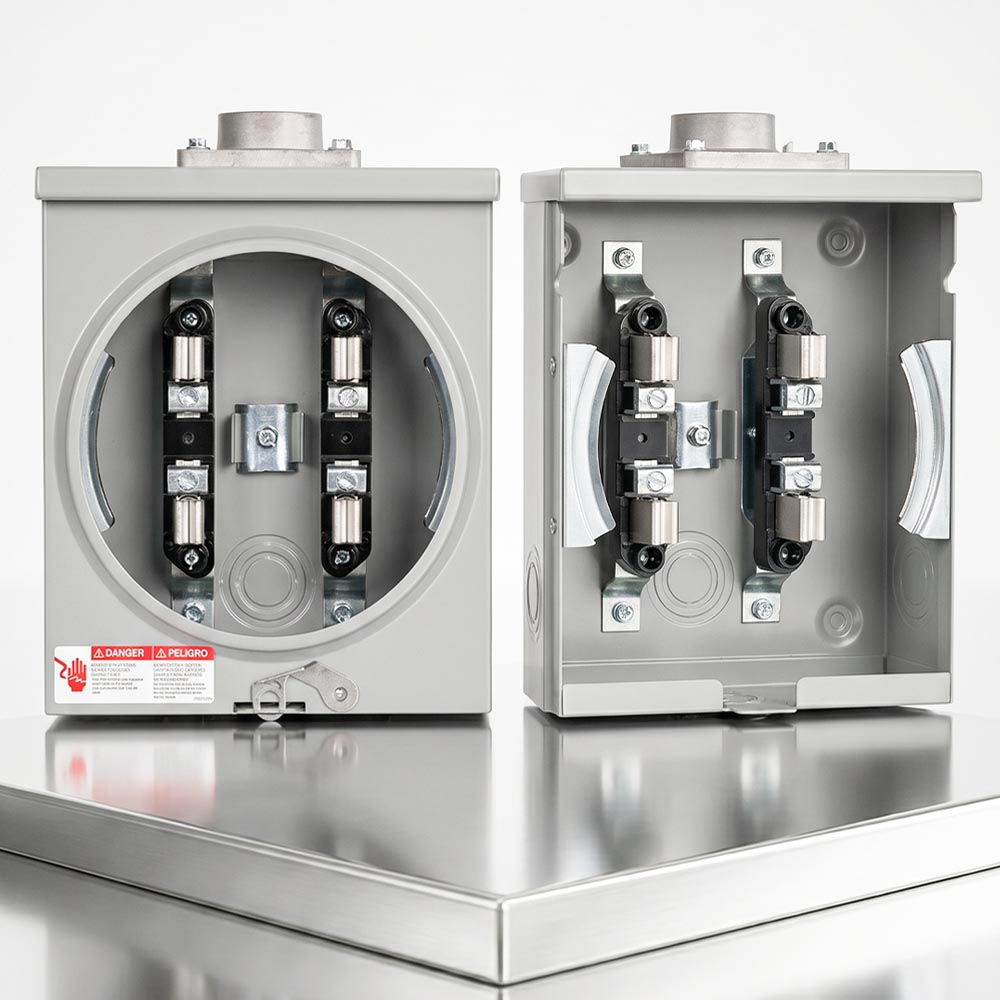

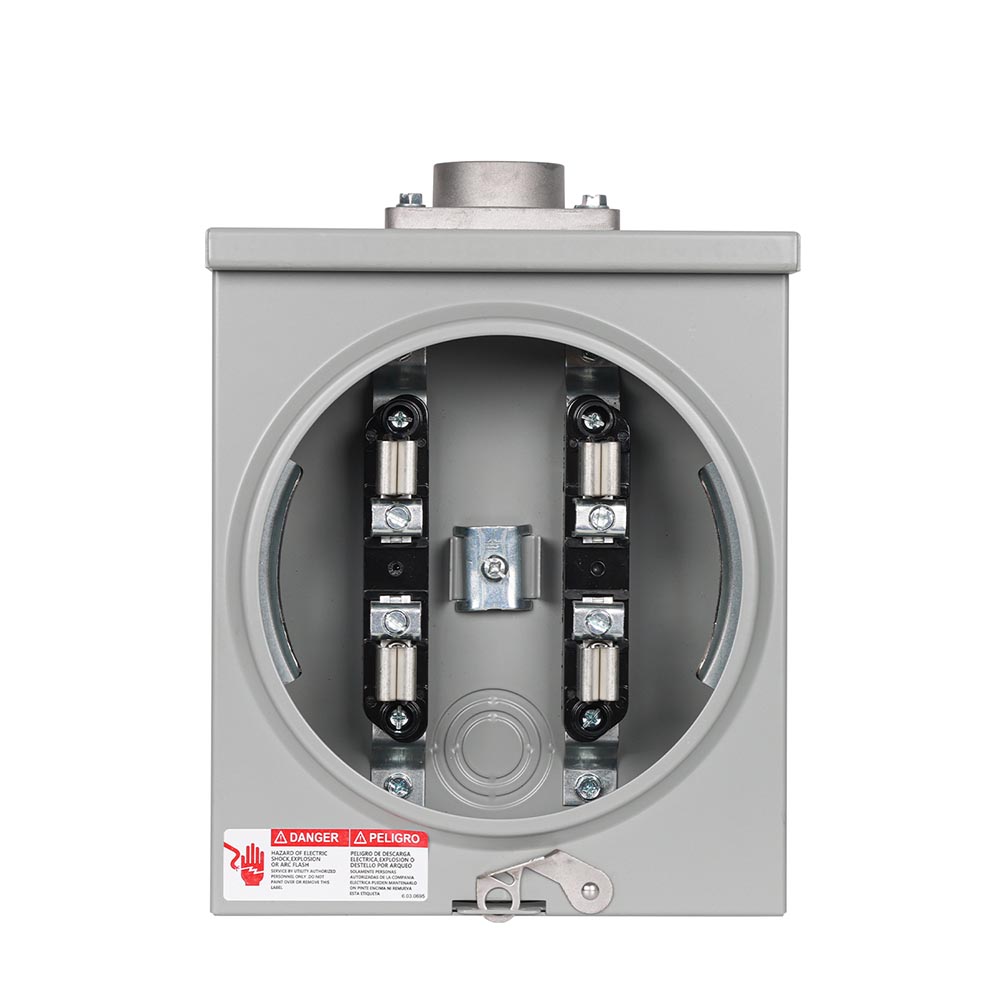

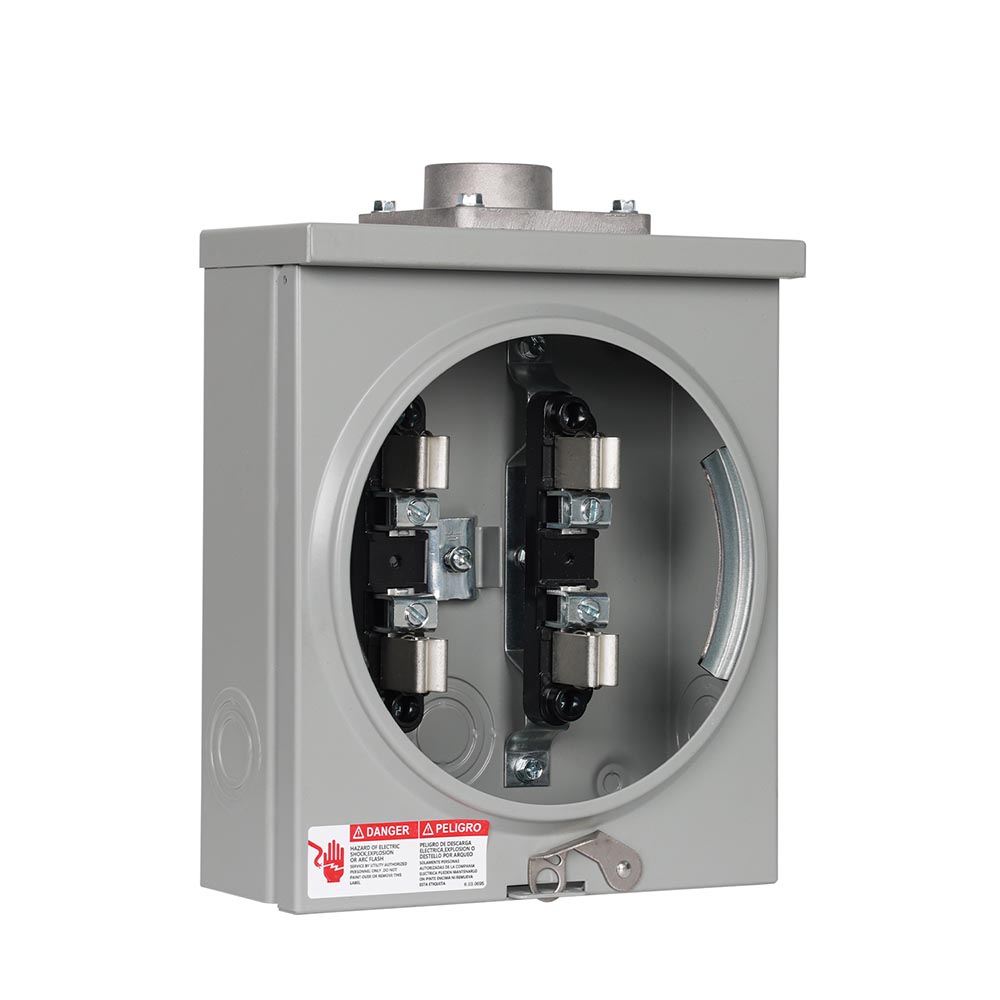

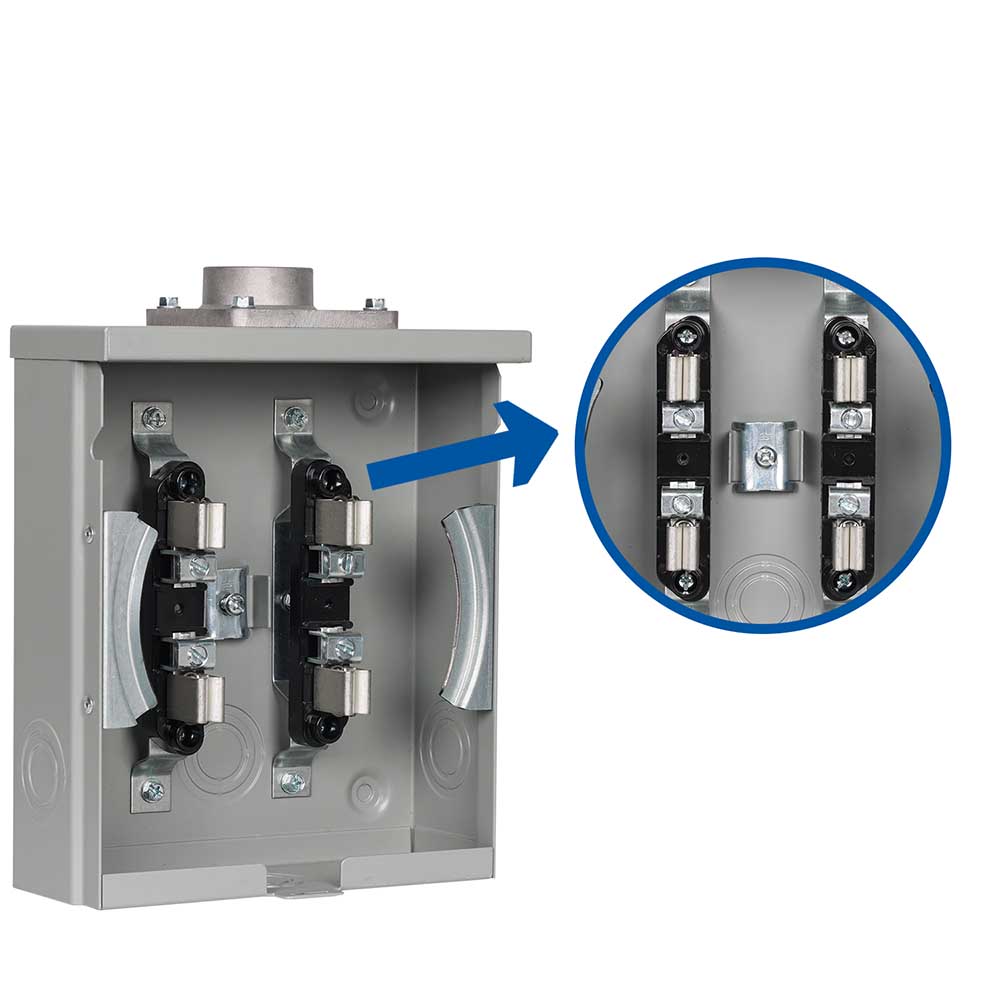

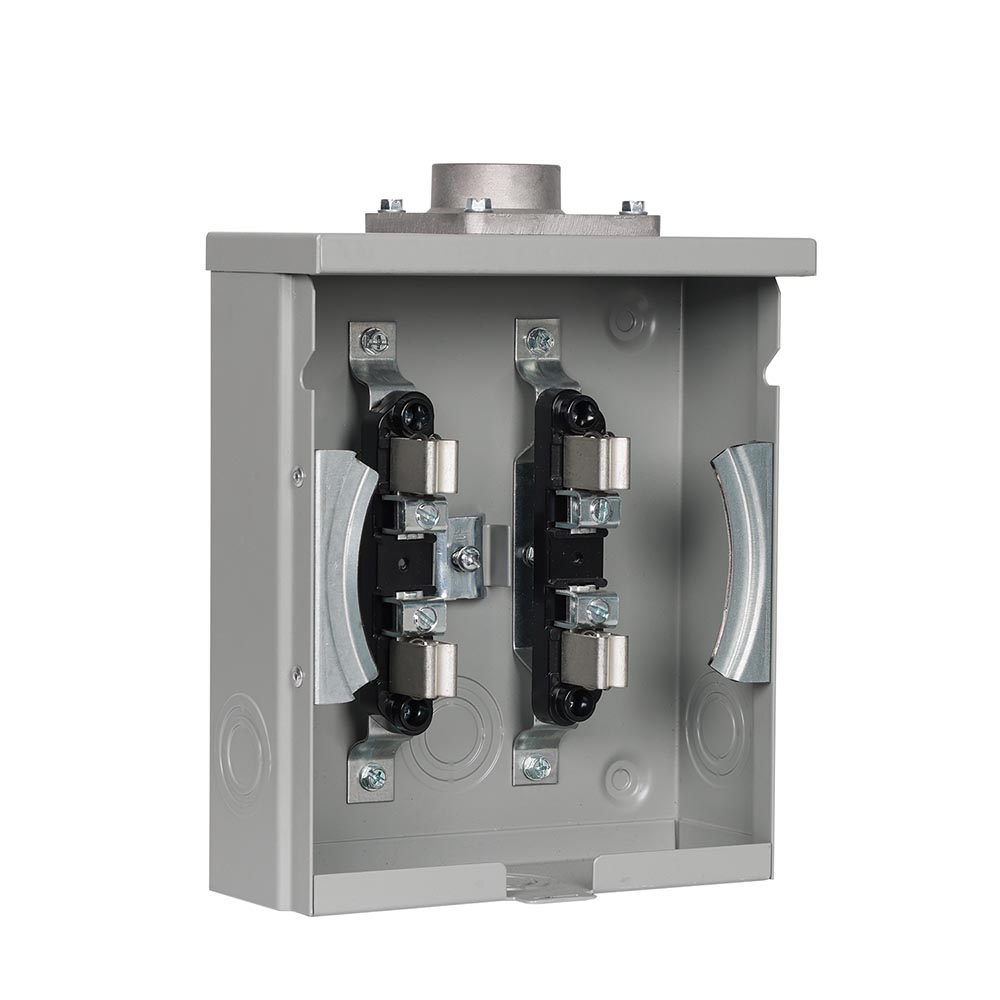

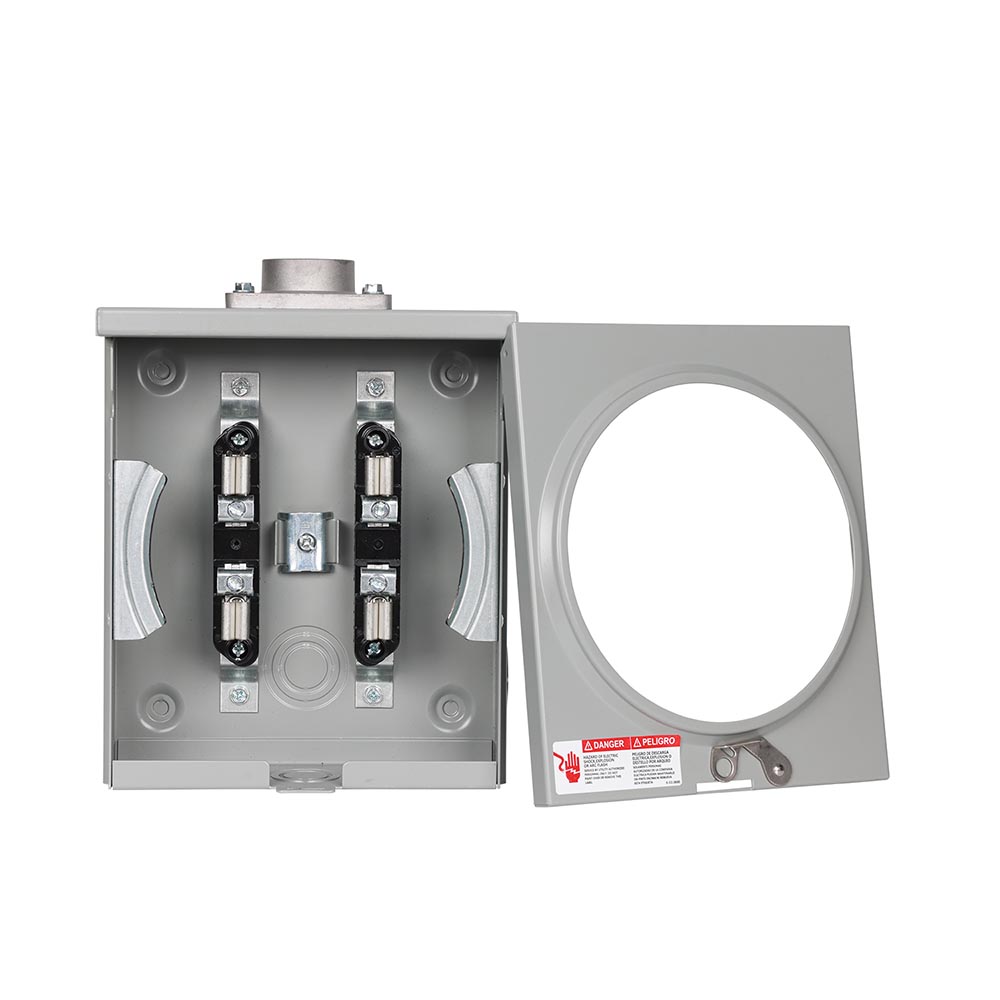

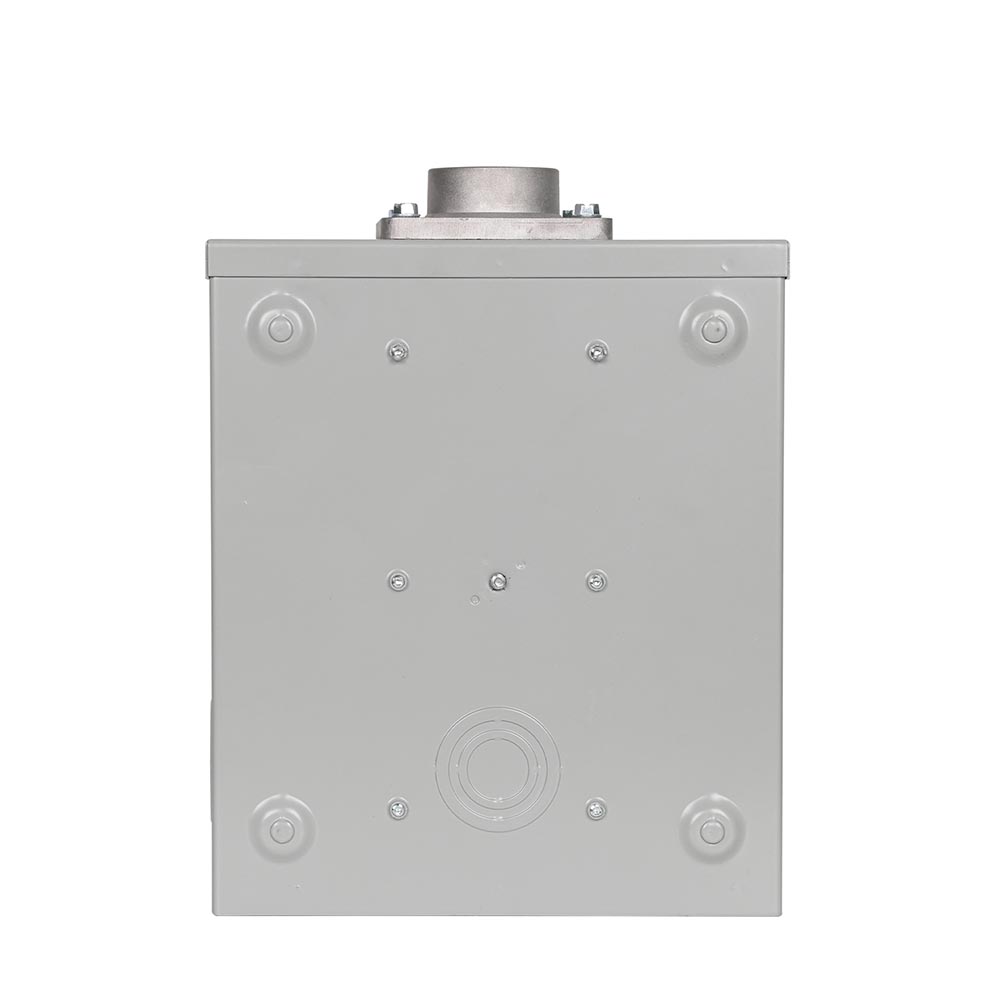

METO MT-100S-4J-RL is a standard 100A single-phase square meter socket engineered for North American residential power metering systems. Built with sturdy galvanized steel enclosure and thick copper conductive terminals, this meter base delivers stable electrical connection, anti-corrosion performance and long service life for outdoor wall-mounted installation.

Application

Single-phase residential power metering projects
New residential construction & house renovation
Rural power grid transformation
Small commercial shops, apartments & townhouses
Outdoor wall-mounted utility meter installation
Prefabricated buildings and temporary construction power distribution
Electrical contractors & power utility company bulk procurement
North American standard electrical distribution matching

Features and Advantages

TRUST & COOPERATION

SECURE TRANSACTIONS

GLOBAL NETWORK

BUSINESS GROWTH

PROFESSIONAL SUPPORT

TECHNICAL EXPERTISE

Technical Parameters

MT-100S-4J-R-H

MT-100S-4J-R

MT-100S-4J-RL

Download

Parameter	Specification
Rated Current	100A
Rated Voltage	120/240V AC
Phase	1 Phase
Frequency	60Hz
Number of Positions	Single Position
Jaw Configuration	4-Jaw
Socket Type	Ring / Ringless optional
Bypass Type	Non-Bypass / Horn Bypass optional
Mounting Type	Surface Mount
Enclosure Material	Galvanized Steel
Finish	Outdoor Powder Coating
Terminal Type	Mechanical Lug
Conductor Range	Al/Cu, as required
Hub Provision	Top / Bottom hub opening optional
Grounding	Ground / Neutral provision available
Cover Type	Lockable Cover
Application	Residential / Light Commercial
Certification	UL Listed / Certification Pending

The file is not available yet. Please contact us for assistance.

Parameter	Specification
Rated Current	100A
Rated Voltage	120/240V AC
Phase	1 Phase
Frequency	60Hz
Number of Positions	Single Position
Jaw Configuration	4-Jaw
Socket Type	Ring / Ringless optional
Bypass Type	Non-Bypass / Horn Bypass optional
Mounting Type	Surface Mount
Enclosure Material	Galvanized Steel
Finish	Outdoor Powder Coating
Terminal Type	Mechanical Lug
Conductor Range	Al/Cu, as required
Hub Provision	Top / Bottom hub opening optional
Grounding	Ground / Neutral provision available
Cover Type	Lockable Cover
Application	Residential / Light Commercial
Certification	UL Listed / Certification Pending

The file is not available yet. Please contact us for assistance.

Parameter	Specification
Rated Current	100A
Rated Voltage	120/240V AC
Phase	1 Phase
Frequency	60Hz
Number of Positions	Single Position
Jaw Configuration	4-Jaw
Socket Type	Ring / Ringless optional
Bypass Type	Non-Bypass / Horn Bypass optional
Mounting Type	Surface Mount
Enclosure Material	Galvanized Steel
Finish	Outdoor Powder Coating
Terminal Type	Mechanical Lug
Conductor Range	Al/Cu, as required
Hub Provision	Top / Bottom hub opening optional
Grounding	Ground / Neutral provision available
Cover Type	Lockable Cover
Application	Residential / Light Commercial
Certification	UL Listed / Certification Pending
