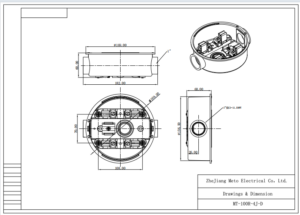

Parameter Drawing
Solution
Related Products

Power Distribution One-Stop Solution

Full Qualifications, Ready For Your Tender

Direct Purchase Of Raw Materials, Automated Production Line

Delivery Schedule Is Stable And Supports Large-scale Orders

Provide Domestic And International Certifications As Well As Product Test Reports

24-hour Professional Team Is Available To Serve You

Product Overview

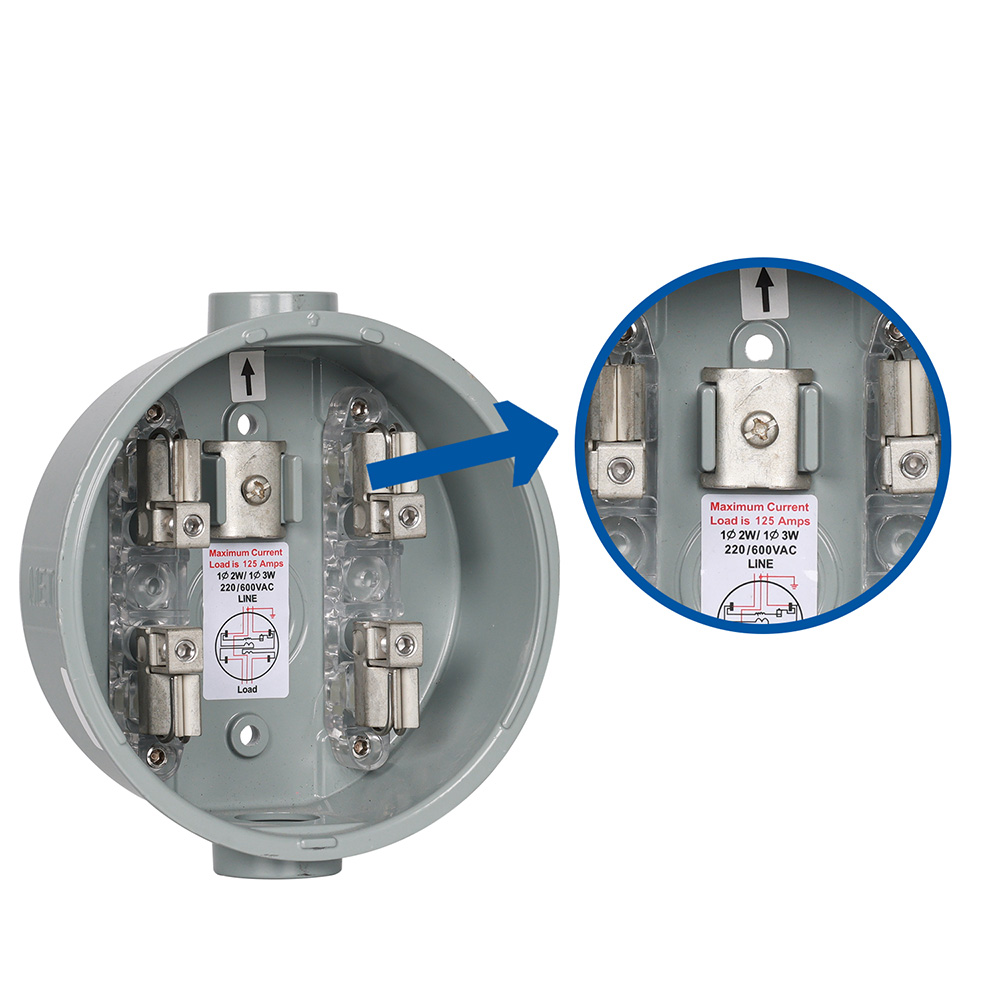

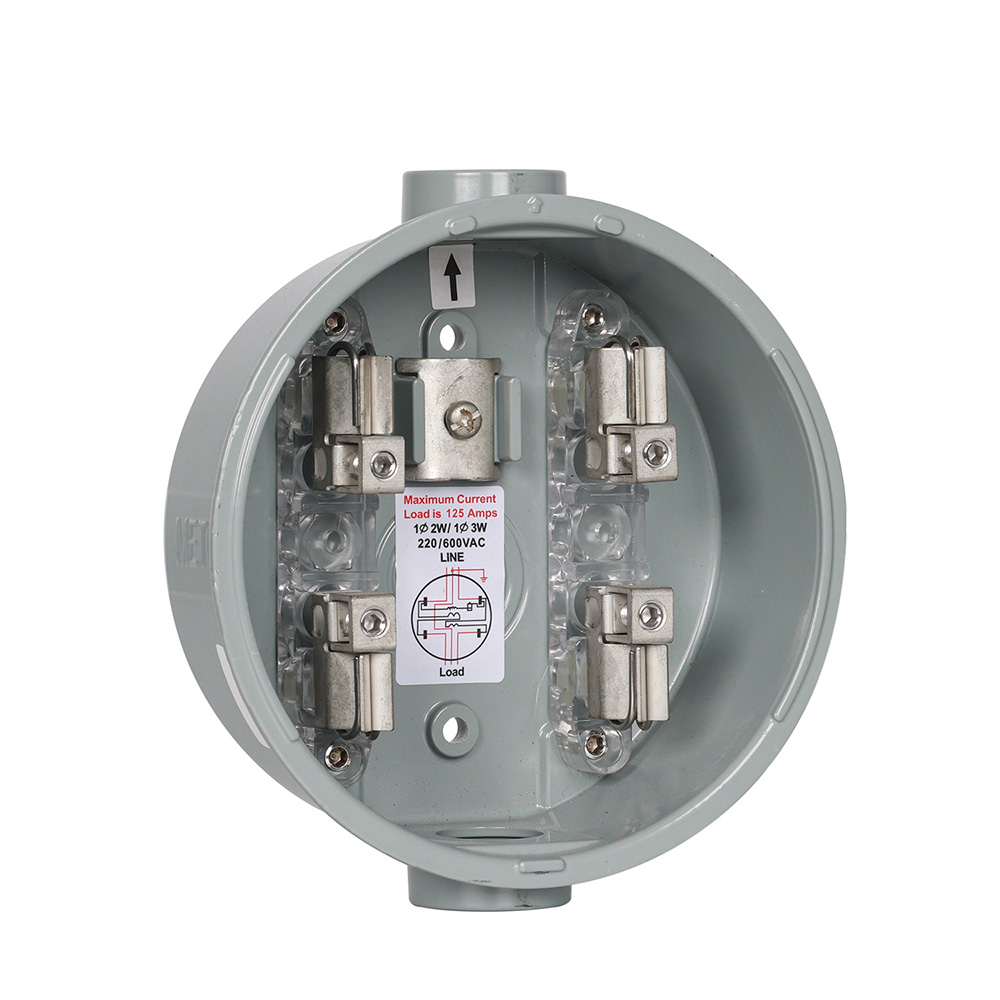

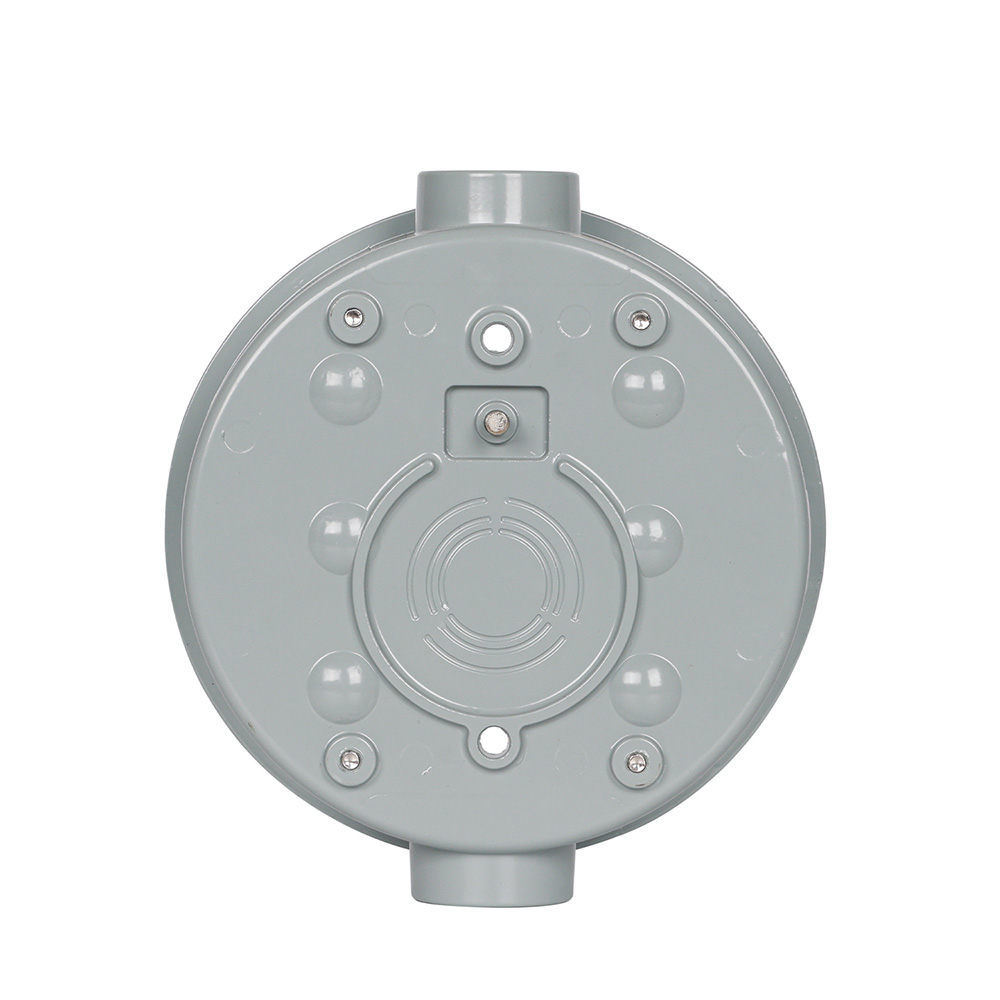

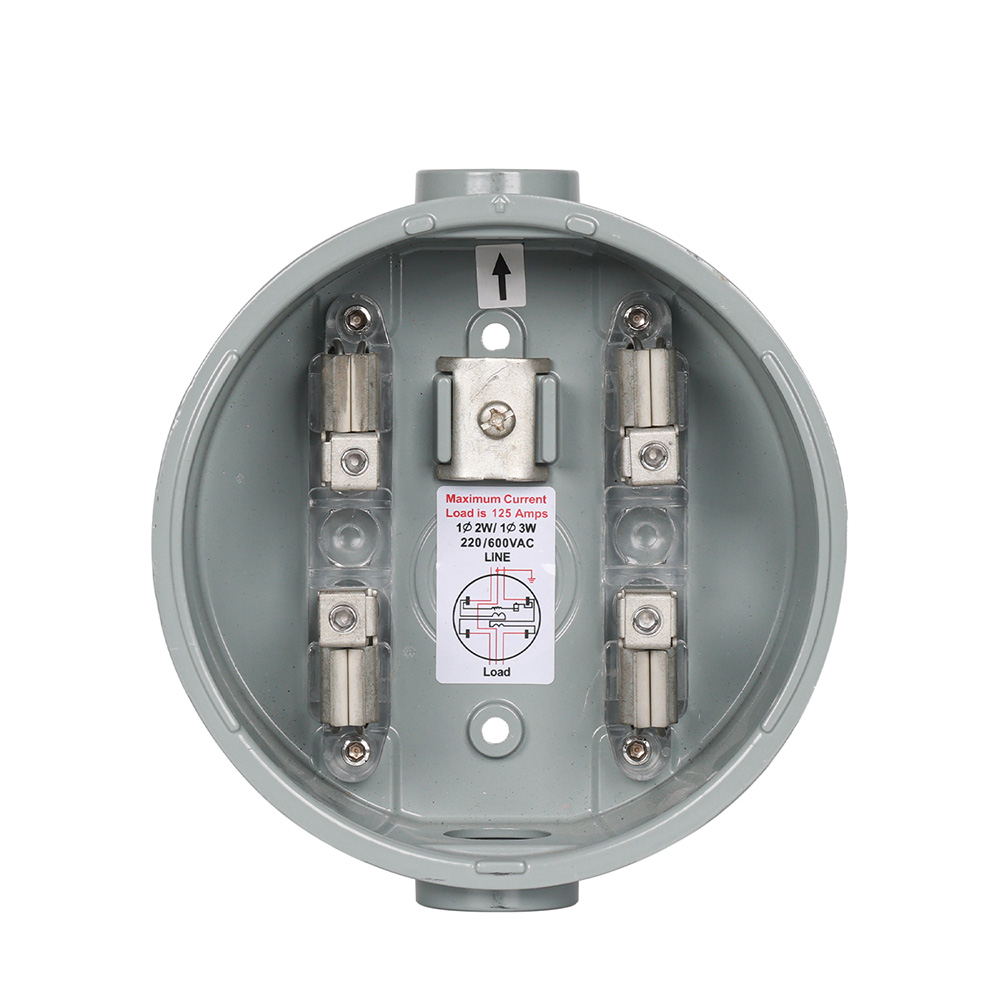

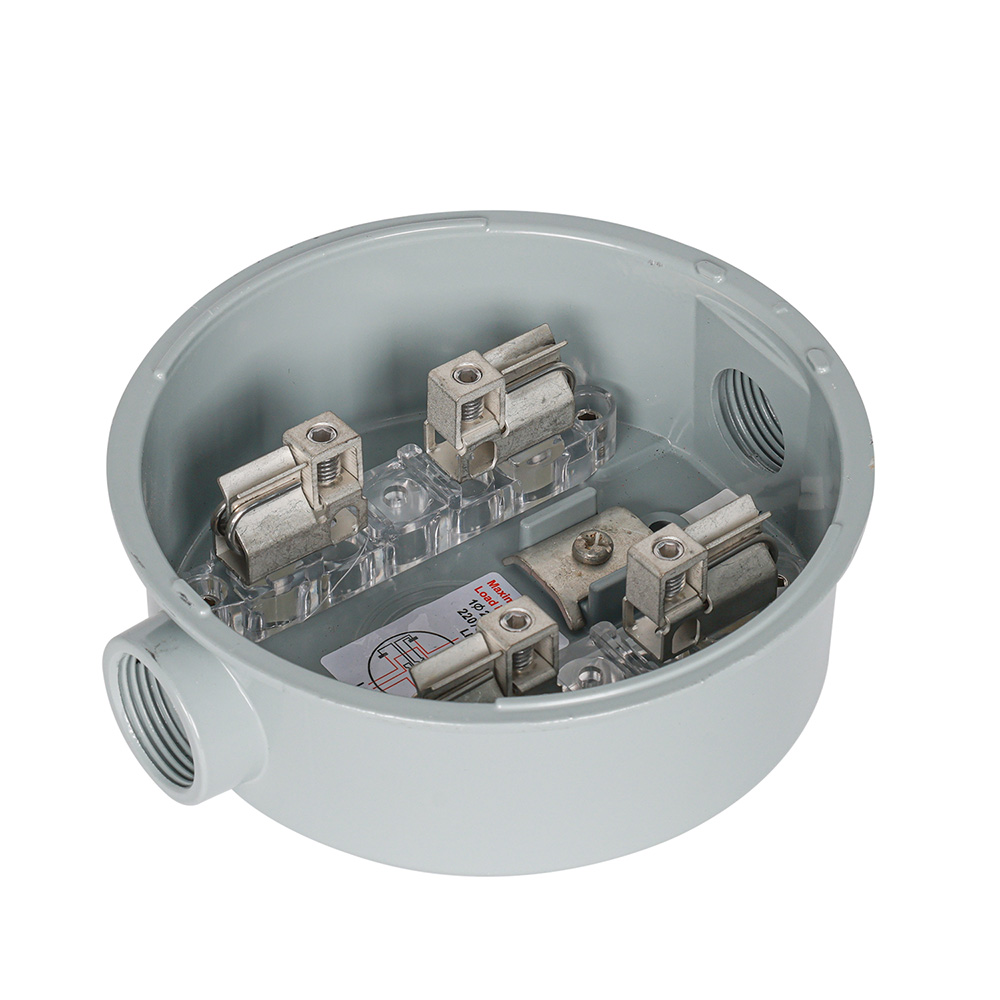

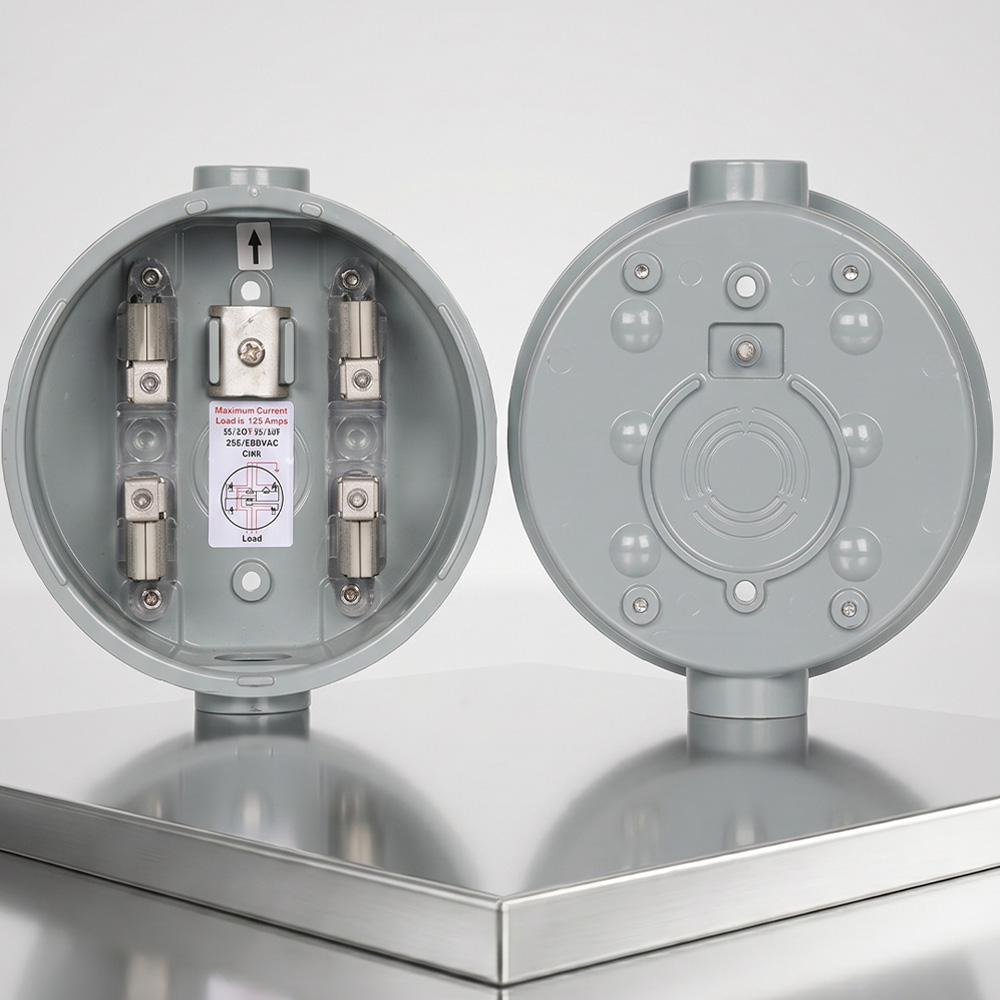

MT-100R-Y1 is a compact round single-phase meter socket rated for maximum 125A, designed for residential outdoor power metering. It adopts high-strength gray insulated round housing with precision machined pure copper terminal lugs to deliver stable low-resistance electrical connection.

Application

Single-family small residential power metering projects
Rural household power grid renovation
Temporary construction power distribution metering
Prefabricated houses and mobile home electrical service entry
Outdoor wall-mounted utility meter box installation
Small retail shops, garden sheds and low-load auxiliary buildings
Electrical wholesalers bulk stock & utility company standard meter matching

Features and Advantages

TRUST & COOPERATION

SECURE TRANSACTIONS

GLOBAL NETWORK

BUSINESS GROWTH

PROFESSIONAL SUPPORT

TECHNICAL EXPERTISE

Technical Parameters

MT-100R-Y1

Download

Parameter	Specification
Rated Current	125A
Rated Voltage	120/240V AC
Phase	1 Phase
Frequency	60Hz
Number of Positions	Single Position
Jaw Configuration	4-Jaw
Socket Type	Steel Screw type
Bypass Type	Non-Bypass / Horn Bypass optional
Mounting Type	Surface Mount
Enclosure Material	Galvanized Steel
Finish	Outdoor Powder Coating
Terminal Type	Mechanical Lug
Conductor Range	Al/Cu, as required
Hub Provision	Top / Bottom hub opening optional
Grounding	Ground / Neutral provision available
Cover Type	Lockable Cover
Application	Residential / Light Commercial
Certification	UL Listed / Certification Pending
